S101800150

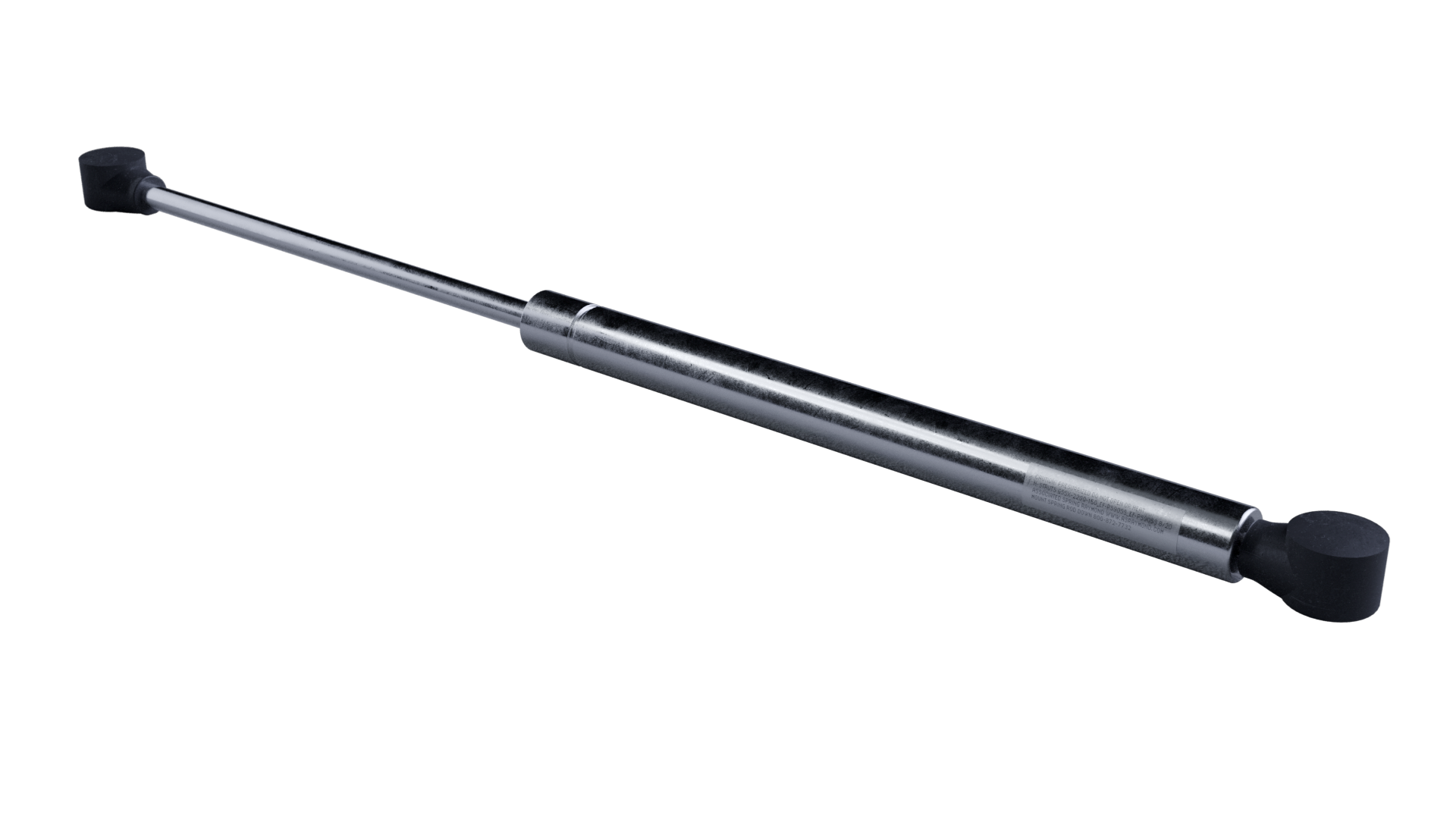

SPD™ Standard Corrosion Resistant Gas Struts, offered in stainless steel, are tested to withstand 500 hours of continuous salt spray. With thousands of counterbalance solutions, The ASRaymond line of corrosion-resistant gas springs are available in various size, stroke, and force combinations.
Designed with an approximate life expectancy of 30,000 cycles, SPD Standard Gas Struts are high-quality, affordable products available from an industry leader with decades of experience in the spring industry. ASRaymond offers standard sizes for SPD Gas Struts that can meet the needs of most applications.
Minimum quantity: 2
Diagram / specifications section
Preview
| Db | Body Tube Diameter (in) | 0.91 |
| L | End Thread A (Rod) (mm) | M8 x 1.25 |
| T | End Thread B (Body) (mm) | M8 x 1.25 |
| L | Extended Length (in) | 18.46 |
| R | Rod Diameter / Inner Tube (in) | 0.39 |
| S | Stroke (in) | 7.09 |
Item specifications
- Body End Fitting TypeBall Socket
- Damped Height (in)1.57
- Force at Length 1 (in, lbs)34
- Force at Length 2 (in, lbs)44
- K-Factor1.29
- Max. Operating Temperature (F)176
- Min. Operating Temperature (F)-13
- Rod End Fitting TypeBall Socket
- Spring Rate (lbs/in)1.4
- Weight (lb)0.61
