F0595-010
SPEC® Finger Spring Washers are designed to reduce noise and vibration. This makes them especially suited for static applications with rotating elements, such as applying an axial load to ball-bearing races. Parts are made from carbon steel with a plain finish.
Minimum quantity: 10

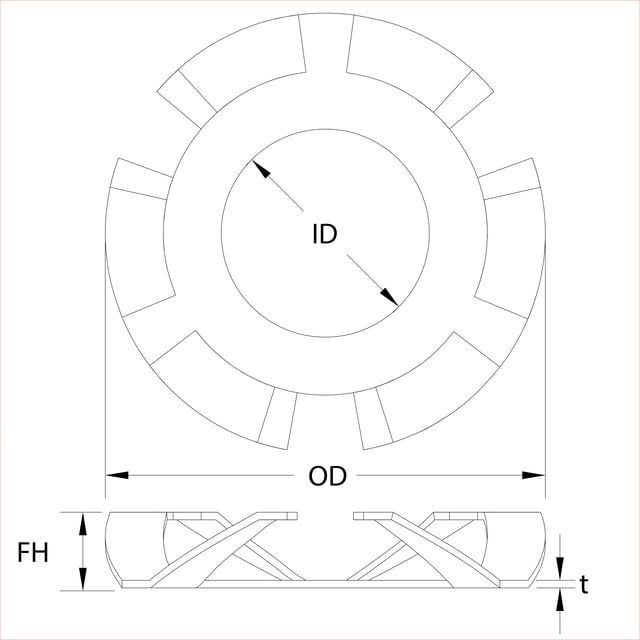

Diagram / specifications section
Preview
| FH | Free Height (in) | 0.094 |
| ID | Inside Diameter (in) | 0.312 |
| P1 | Load at H1 (lbf) | 0.9 |
| H1 | Loaded Height (in) | 0.062 |
| OD | Outside Diameter (in) | 0.63 |
| t | Thickness (in) | 0.01 |
Item specifications
- MaterialCommercial 1074 Strip
- Material Chemistry/DimensionalASTM A684
- Material TypeCarbon Steel
- Max. Operating Temperature (F)250
- Min. Operating Temperature (F)-40
- Weight (lb)0.0007
