B0492-010

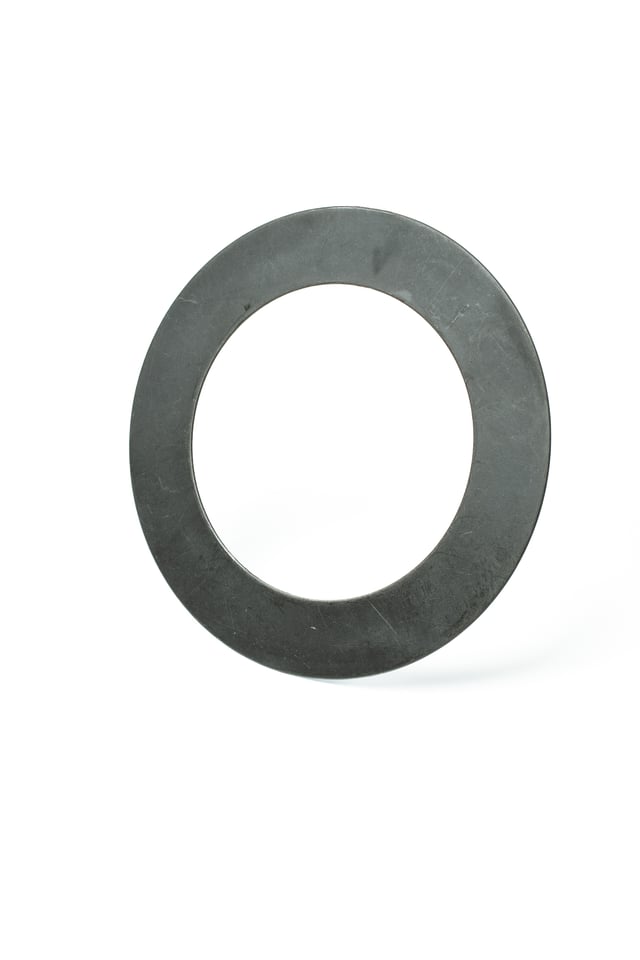

SPEC® Disc Springs for Ball Bearings are specifically designed for use with standard-sized ball bearings. Sometimes referred to as Belleville springs, ASRaymond’s Disc Springs are matched for use with commonly available bearings.
ASRaymond’s Disc Springs for Ball Bearings apply a preload to bearings, limiting play and reducing wear. When included in an assembly, these bearing-matched Spring Washers provide the necessary slack take-up on shafts and housings. They help extend the life of such systems, while eliminating noise and vibration.
Minimum quantity: 10
Diagram / specifications section
Preview
| FH | Free Height (in) | 0.02 |
| ID | Inside Diameter (in) | 0.319 |
| P | Load at Deflection (lbf) | 8.2 |
| OD | Outside Diameter (in) | 0.492 |
| D | Spring Deflection (in) | 0.0074 |
| t | Thickness (in) | 0.01 |
Item specifications
- Bearing NumberR-3
- FinishNone
- MaterialHigh Carbon Steel Strip
- Material Chemistry/DimensionalJIS G3506
- Material TypeCarbon Steel
- Max. Operating Temperature (°F)250
- Min. Operating Temperature (°F)-40
- Weight (lb)0.0003
