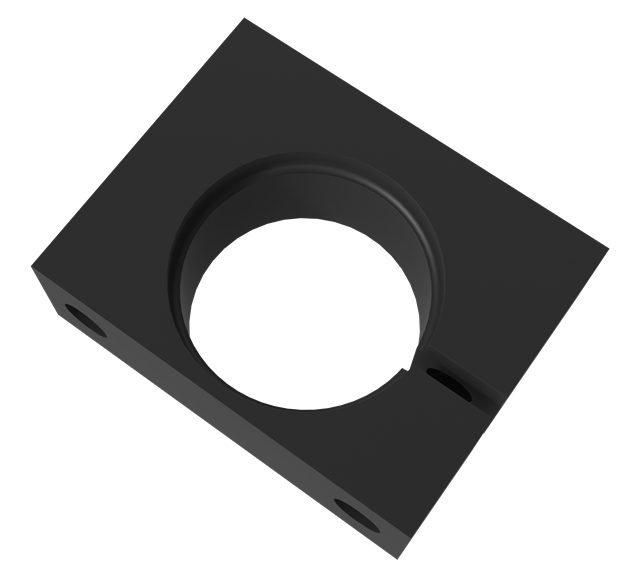

HMF-750 w screw
The HMF mount is a symmetric horizontal body mount similar to the S mount. The HMF mount meets the VDI 3003, Ford WD-X35-62 and GMDS 90.25.455 standard.
Diagram / specifications section
Preview
| A | A (in) | 3543 |
| B | B (in) | 2756 |
| C | C (in) | 1181 |
| D | D (in) | 0,984 |
| E | E (in) | 2677 |
| F | F (in) | 1984 |
| G | G (in) | 0,433 |
| H | H (in) | 0,709 |
| J | J (in) | 0,591 |
| K | K (in) | 1181 |
| L | L (in) | 1976 |
Item specifications
- Weight (lb)1.763696
- Weight (lb)1.763696
