FCR-19 VDI2
Upper Square Flange

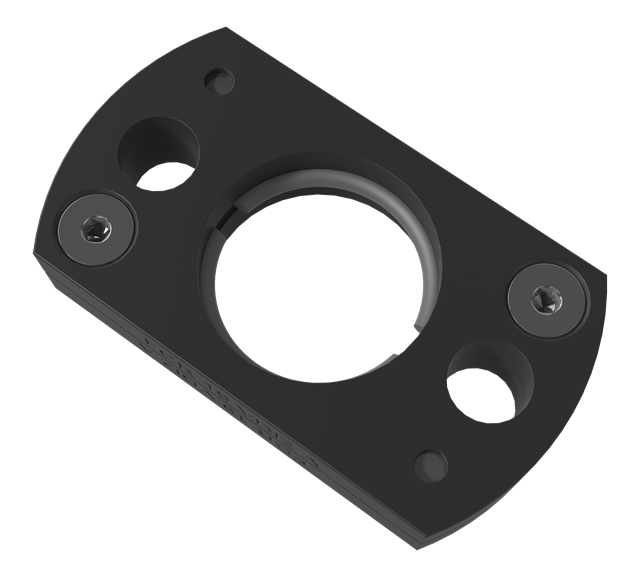

FCR is a rectangular flange mount used to mount the gas spring in the upper C-groove. FCR meets ISO 11901-2, VDI 3003, GM 90.25 and other standards
Diagram / specifications section
Preview
Preview
Preview
| A | A (in) | 1.772 |
| B | B (in) | 1.26 |
| C | C (in) | 0.984 |
| D | D (in) | 0.276 |
| E | E (in) | 0.846 |
| F | F (in) | 0.354 |
