306-614-D

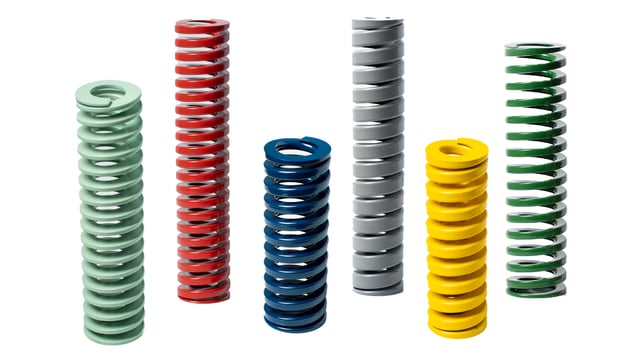

Raymond® ISO D-Line series Die Springs (direct replacement for other Die Springs on the market) are offered in six robust duty ranges: ultra-light, light, medium, heavy, extra heavy, and ultra-strong.
ISO D-Line Die Springs are ideal for sheet metal forming or other press tool applications that need a spring force applied or other applications that need to store and release energy. Die Springs can apply a higher force per inch of compression or deflection than traditional, round wire Compression Springs. Utilizing Raymond® Die Springs enables high lifecycles, longer durability, and longer time between maintenance teardowns.
Pack quantity is 10 pieces
Diagram / specifications section
| FL | Free Length (in) | 3.504 |
| H | Hole Fit Diameter (in) | 1.25 |
| P | Load at D1 (lbf) | 658.6 |
| P | Load at D2 (lbf) | 774.6 |
| P | Load at D3 (lbf) | 968 |
| D | Maximum Operating Deflection D3 (in) | 0.876 |
| D | Maxiumum Deflection for Long Life D2 (in) | 0.701 |
| D | Maxiumum Deflection for Optimal Life D1 (in) | 0.596 |
| R | Rod Fit Diameter (in) | 0.63 |
| R | Spring Rate (lbs/in) | 1105 |
Item specifications
- MaterialChromium Silicon Wire
- Material Chemistry/DimensionalASTM A877
- Material TypeAlloy Steel
