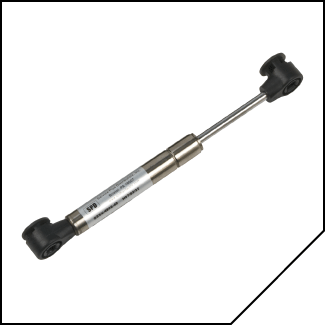

S14SBJ0200: Standard Gas Struts

Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Rod Diameter (Dr) (in) 0.55
Body Diameter (Db) (in) 1.10
Stroke (S) (in) 13.780
Base Cylinder Length (BL) (in) 30.16
Force (lb) 45
Thread (T) M10 x 1.5
Material SS
Material Specification 316L 500H ASTMB117
Finish P
Shipping Weight (lb) 10.165385
Shipping Height (in) 1.213
Shipping Length (in) 1.306
Quantity Discounts
10 To 49 $113.24
50 To 148 $95.83
