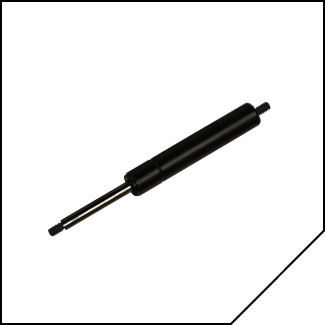

DA-600V-DF: Dual Direction

Quantity

Adobe 3D PDF help

Line Drawing - Click to Enlarge

Product Details

Rod Diameter (Dr) (in) 0.32
Body Diameter (Db) (in) 0.71
Stroke (S) (in) 6.000
Base Cylinder Length (BL) (in) 15.59
Dampening Rate (40LBS-F / 180N Applied Load) (in/sec) 1.0
Thread (T) M6 x 1.0
Material ST
Material Specification 144H ASTM B117
Finish Nitride
Shipping Weight (lb) 2.171720
Shipping Height (in) 0.780
Shipping Length (in) 14.173
Quantity Discounts
1 To 4 $37.88
5 To 9 $26.71
10 To 49 $24.64
50 To 148 $20.51
